Bronco Radio Mount

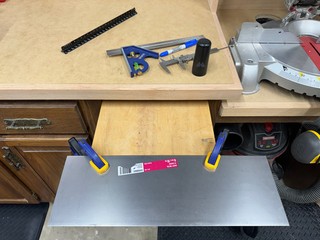

  • Gonna try to fabricate a little Midland Ghost antenna mount outta this metal

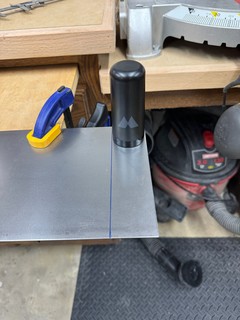

  • Bout to do my first fabricating

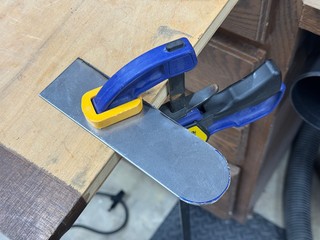

  • First time really cutting and shaping with metal

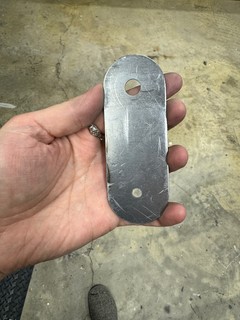

  • Ghost antenna cut out

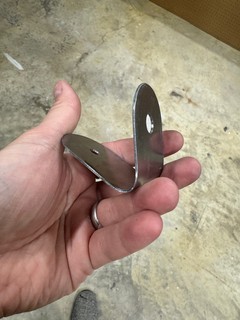

  • I probably should've bought a metal brake

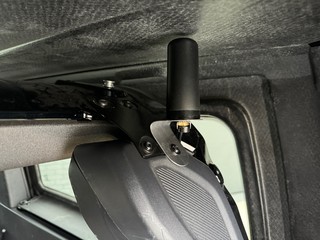

  • Test fitting the mount

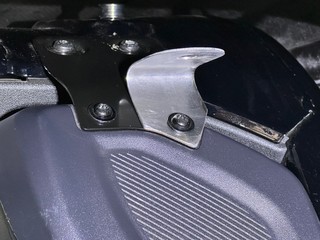

  • Reshaped the mount to match the speaker bracket

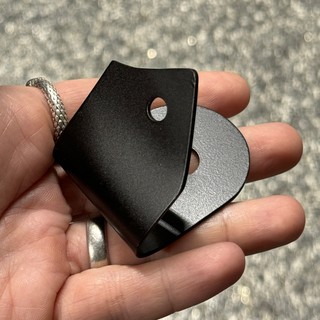

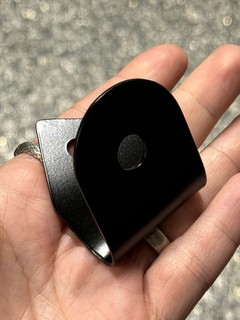

  • Painted custom ghost antenna mount
  • Painted custom ghost antenna mount

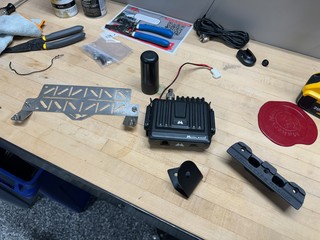

  • Bout to install the Mountains2Metal concealed radio mount, Midland MXT275 radio, MXTA25 Ghost Ant...

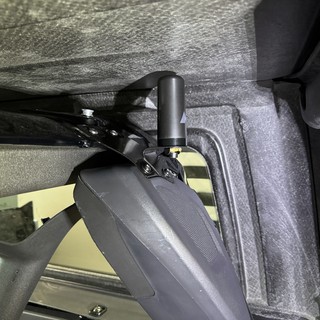

  • Midland Ghost Antenna mounted to the rear Bronco rollbar via the rear speaker mounts

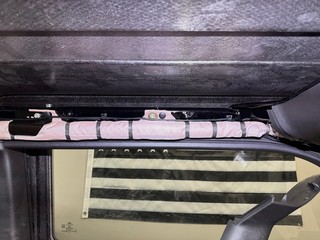

  • Ran the antenna wire above the side airbags with some sticky wire clips

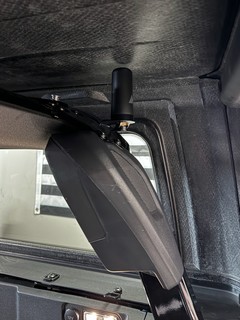

  • Midland Ghost antenna tucked out of the way and hidden inside

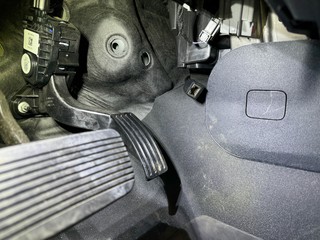

  • 3' CAT-6 Extension will be tucked behind the center console panel when not in use. Then I can jus...

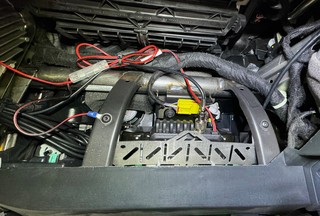

  • Radio tucked up into the dash, above the glovebox and wired into upfitter aux switch #6

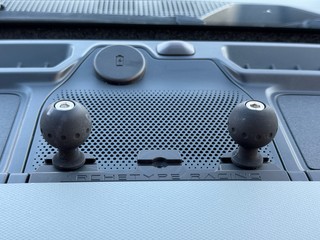

  • Archetype Racing SLAP / BPM + BALLS mounted

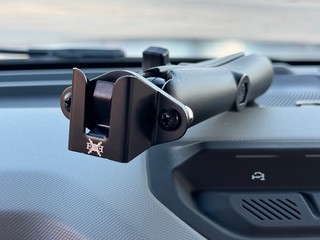

  • RAM arm with the Tackform CB Mic Mount

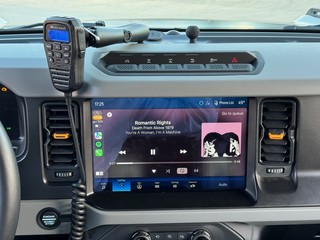

  • Mic fits perfectly

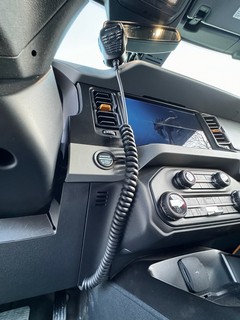

  • GMRS Mic cable routed under the dash
Photos / Events / Bronco Radio Mount

A few photos of the concealed GMRS radio mount that I added to my Bronco. The goal was to be as stealthy as possible, not block any of my dash, and have the mic be easily removable when I'm not off-roading. I made a custom bracket to mount a Midland MXTA25 Ghost antenna to the back of my rollbar. The antenna wire is concealed behind plastic panels along the roll bar, above the side airbags, down the A-Pillar, and to the passenger foot panel. I concealed the Midland MXT275 radio in the dash, above the glovebox with the Mountains2Metal radio bracket, and powered it via Ford's Upfitter switch #6. A CAT-6 extension is run from the radio to the driver's side foot well where I'll plug the mic in when I need it. The Mic is supported by the Archetype Racing BPM / SLAP accessory mount + their 1" B-sized BALLS, a long RAM arm, and the Tackform CB mic mount. With my initial test, I got 1.5 miles of range in town, which is plenty for me.

Photos taken from December, 2023 to February, 2024 in Des Moines, Iowa
